GSM Home Alarm Security System with Touch Keypad/LCD Display/RFID

FOB Reference Price:Get Latest Price
US $75-78 / Sets | 10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
SecuStone
Model Number:
YL-007M2FX
Usage:
Home Alarm/Security
Quality:
High
Price:
Competitive
Warranty:
2 years
Certificates:
CE/RoHS/FCC/ISO
Company Since:
1998
Coorperation Mode:
Distributor/Dealer/Wholesale/Retail
OEM/ODM:
YES
Frequency:
433MHz
Band:
850/900/1800/1900MHz
SupplyAbility
SupplyAbility:
500000 Set/Sets per Month
Packaging & Delivery
Packaging Details
1 Package in a Gift Box, 10 Packages in a Carton
Port
Shenzhen
Lead Time :
5-15 working days

I. Newly Innovative YL-007M2FX Alarm Syatem







Newly Developped GSM Home Alarm Security System, with LCD Display, Touch Keypad and RFID







--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

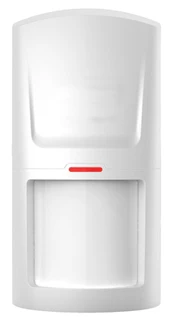

II. Elegant HW-03D PIR Detector









A special home and business PIR Detector with delicate and modern design(appearance with patent), adopting the latest technology of smart logic IC and high-performance sensor to achieve high stability and avoide alarm failure.



Sensor: Passive IR sensor with low noise
Working voltage: DC6V,(4 PCS AAA 1.5V dry batteries)
Static current:<60uA
Alarm current:<20mA
Working Temperature:+5~+45 Celsius Degree
Humidity:≤95%(no fog)
Transmitting frequency:315/433+0.5MHz
Transmitting distance: no obstacle 80M
Detecting distance: 12M max
Detecting angle: Horizontal 110 degree, Vertical 60 degree
Coding method: PT2262 or EV1527 optional
Dimension: 112*60*38mm





--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

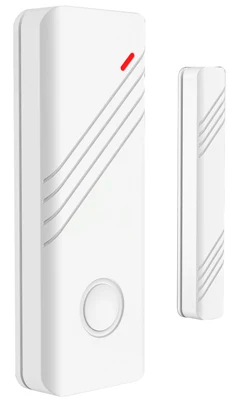

III. High-performance MC-03B Wireless Door/Window Gap Detector





1. Ultra-thin modern design (appearance design with patent), suitable for various kinds of doors and windows;
2. Shell buckling design for convenient battery changing;
3. Power switch can extend life span of the battery;
4. Auto manual alarm button, as well as emergency button;

5. Built-in antenna, delicate and modern looking.



Working voltage: DC 12V (Built-in 12V dry battery)
Static working current: <10uA
Alarm current: <30mA
Working Temperature: +10~+40
Humidity: ≤95%
Emitting frequency: 315/433/868+0.5MHz
Emitting distance:
(no exterior soft antenna) no obstacle 80M
(With exterior soft antenna) no obstacle 100M
Gap distance: 15mm max
Coding method: PT 2262 or EV1527





--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------





IV. High-Stability JD-01 Mini Siren









1. For indoor use
2. 110 dB wired siren

3. Fit for any control panel







--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------







V. Smart YK-06 Remote Control









Power Supply: DC 12V (built-in 12V battery)
Static Current: 0
Transmission Current: 15mA
Transmission Frequency: 315/433±0.5 MHz
Transmission Distance: No obstacle 80m
Working Condition: Temperature -10°C~+40°C
                                Relative Humidity≤90%





--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

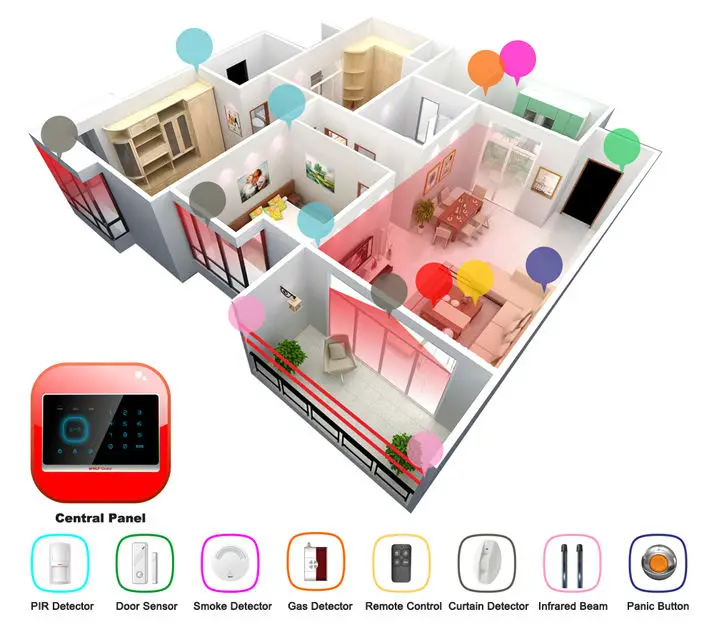

VI. Installation Diagram











--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------





VII. Overview of Company







We are a professional manufacturer of Home Security Alarm Sytem for 15 years. Until now, we supply CE/FCC/ROHS certified security alarms to more than 70 countries. We have our own R&D centre and factory, are capable to promote new products into markets and keep step with the latest technology, meet various requirements by providing OEM/ODM service. Our goal is to provide a comprehensive solution for Home Security.We believe we will be your next and long-term supplier.









GSM HOME SECURITY ALARM SYSTEM













For Professional Security Solution and Long-terms Coorperation,  Please Contact Andy Long, We Are Always Striving For Your Security.
